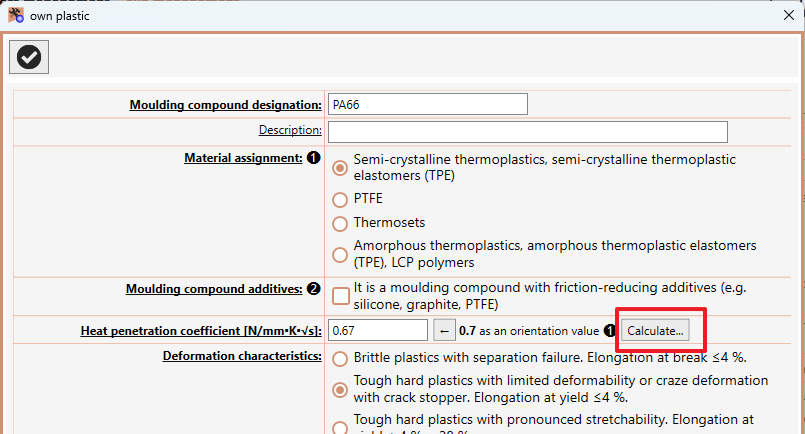

In addition to the corresponding orientation value, you can also calculate the heat penetration coefficient.


To do this, click on the [Calculate] button on the right.

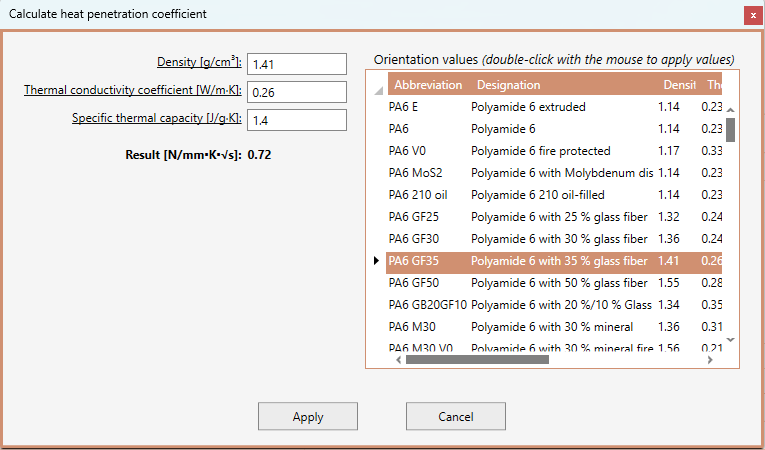

The following window opens. Enter the data for density, thermal conductivity and specific heat capacity here. The result is displayed immediately below.


In the list (right), approx. 150 materials are listed with the required data (orientation values). Double-click with the mouse to transfer the data for a material into the input fields. The list can be sorted in ascending and descending order per column.


If you close the window via the [Apply] button, the result is transferred to the corresponding input field (see above).
