Different deformations and positional deviations of tool parts due to compressive stress are detected by differentiating between tool-bound and non-tool-bound part dimensions. Tool-related dimensions are dimensions in the same tool part, while dimensions that are not tool-related are created by the interaction of different tool parts and thus tend to cause larger dimensional variations. In addition to the rigidity of the tool design, the processing conditions have a significant influence. For the graphical demonstration of corresponding dimensions (x), a corresponding representation from ISO 20457/DIN 16742 was adopted.

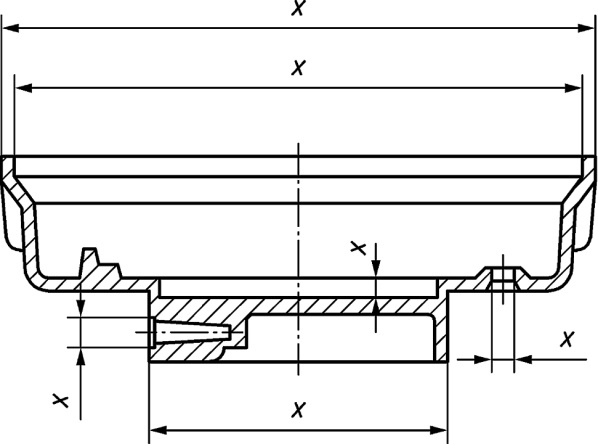

Tool-related dimensions

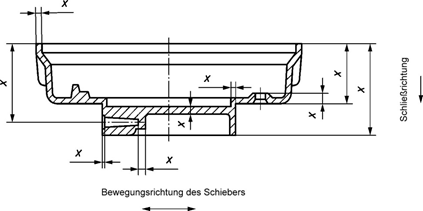

Non-tool-related dimensions
