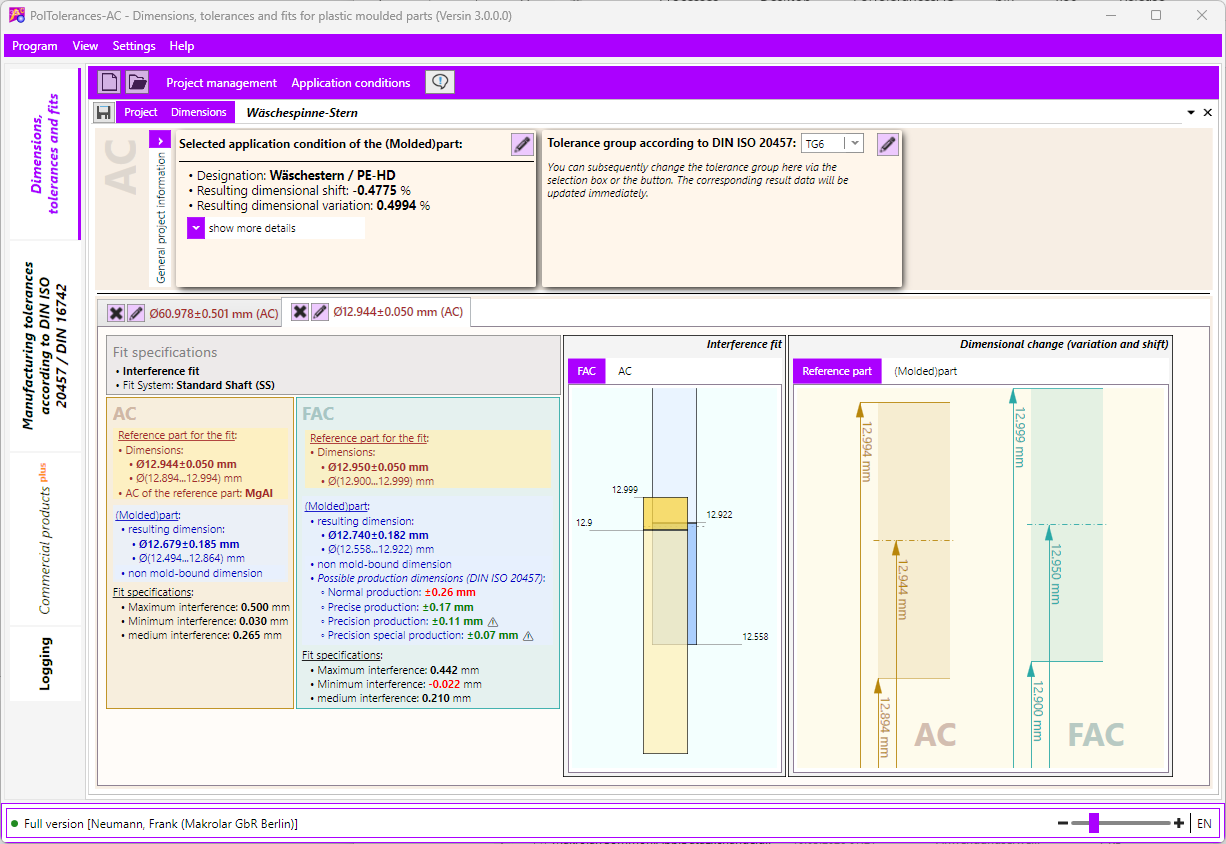

The main window of the software module “Dimensions, Tolerances and Fits”.


The figure shows an example project in which two fit dimensions were defined under application conditions (AC). The resulting dimensions and results are displayed under the fabrication acceptance conditions (FAC).
